GN Solids Control is China leading manufacturer of compact design mud recycling / cleaning system for HDD, CBM drilling and water well drilling. GN mud desanding plant for micro tunneling, piling and other trenchless activities is also sold well.
GN 500 GPM mud recycling system for HDD and water well drilling has be dispatch for Middles East. The system is catering for mobile unit, and can be used for water well drilling, horizontal directional drilling (HDD), Coal bed methane (CBM drilling), as well as oil and gas drilling.

Equipment included in the 500GPM Mobile unit mud system:
1) GNZS703E-ZD shale shaker, 1 ea
It is a linear motion shale shaker with 3 panels. The shaker is equipped with back type feeding box for a lower feeding height. In case the mud will be flowed to shale shaker directly through pipelines.
Features of GNZS703E shale shaker
a. It utilizes the most reliable linear motion for a stable performance.
b. The shaker model utilize pretention screen, Each screen mounted by 2 ea wedge for fast screen changing.
c. The shale shaker deck of GNZS703E shaker is made from stainless steel material for a better performance of anti-abrasive and longer lifetime.
d. The dumpling spring of the shaker is steel material internal for more stronger and better performance of vibration desorption. The spring external is protected with rubber sleeve to prevent fingers involved in during operation.
e. The vibration model is chose from worldwide famous brand: Italy Oil or Martin.
2) GNZJ703E-8S desilter mud cleaner
It is the combination of a shale shaker GNZS703E and 8 ea 4’’ desilter cone assembly. The 4’’ desitler cone is made from PU material for long lifetime.
And the cone assembly is removable. In case needed, the Operator can bolt off the desilter cone assembly and mounted a feeder box and use it as a separator shale shaker.
3) Slurry pump 1 ea. In case mud maybe stocked in mud pit, a slurry pump is used as backup.
3) Mud tank 1 ea. The mud tank is equipped with container block for easy mounted and clocked on the trailer.

GN Solids America, it is the branch company of GN Solids Control Company Limited. It is located in Houston Texas. With its own office building and warehouse.

GN Solids Control and GN Solids America took part in 2015 OTC oil show with great success. The head company GN Solids Control takes its latest design drilling waste management equipment (high speed decanter centrifuge, vertical cuttings dryer) for the show. And GN Solids America show the mud cleaner separator machine for the OTC oil show. Mud cleaner is a 3-in-1 machine, with the function of desander, desilter, and a under flow shale shaker.

GN solids control mud cleaner for oil and gas drilling showing on OTC
1) Mud cleaner model: GNZJ594E-2S12N
It is the combination of under flow shale shaker GNZS594E, a 2-cone desander, and 12-cone desilter.
2) Capacity of the mud cleaner: 240m3/h (max.)
The capacity of mud cleaner depends on the desander cone and desilter cone capacity. The smaller one is the treating capacity of the whole treating capacity.
Desander cone and desilter cone is on D100 separation machine. There will be some amount of useful mud discharged together with dirty mud. So the function of underflow shale shaker is to further treat and recovery mud and dry the solids discharge.
Some jobsite may use desander or desilter with not under flow shale shaker to save cost. But the performance is surely not as good as the combined one.
3) Feeding pipe size of the mud cleaner is 6’’ and the output size if 8’’. GNSB8*6 centrifugal pump is mostly used to feeding for the desander and desilter.
4) Shaker screen of the GNZJ594E-2S12N mud cleaner: the under flow shale shaker is a 4-panel shaker with long shaker deck. It can make the solids more dryer. The shaker screen is pretention type, and mounted with wedge for fast screen changing.
5) GN patent design for Synchronous adjusting of the deck angle. When the operator adjust shaker angle at any side, both sides will be up or down with exactly the same angle. It saves time of jobsite people and easy for operation.


GN Solids Control only focus on top quality products, and offer with reasonable price. Since GN Solids Control company select the best quality material, and use the best machine to manufacture the solids control equipment, our market position is the best quality and reason price for China top market and international market, a little higher price than average price of our China competitors.


For Solids Control System

  •  In Australia and New Zeland, GN Solids Control company is the only one China competitor for Local company and USA Europe company. GN Solids Control partnered with a Germany drilling rig manufacturer TT Asia, to take care of our solids control equipment business in Australia.
  • Since GN Solids Control have the CE certificate to export to Europe ,we also have the advantage for complete systems to European market.   http://www.gnsolids.com/News/156.html
  • Recently We have 2 Solid Control system building for SJ Petroleum export rig, and we have 2 Solids Control Systems for RG petroleum, and we have an order from HH (Honghua) for 4 Sets completed solids control equipment for their rigs.

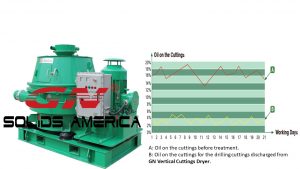

GN  Vertical Cuttings Dryer

  • GN started developing the Vertical Cuttings Dryer from 2011 and have used the first Generation in 2012, we have already sold around 30 Vertical Cuttings Dryers to China and international market. Other Chinese company just start developing Vertical Cuttings Dryer from 2013, 2 years later than our company. From March 2014, we are selling the 2nd Generation Cuttings Dryer, this is the first cuttings dryer in China and applied in WBM and OBM.
  • You can check our Videos for Drilling cuttings dryer:
  • http://www.gnsolidscontrol.com/video/vertical-cuttings-dryer-water-based-mud-drilling-waste
  • http://www.gnsolidscontrol.com/video/drilling-cuttings-vertical-dryer-testing
  • Many big oilfield service companies like Halliburton and Baker Huges are discussing with our company to work together for the drilling waste management equipment. GN have good business with big international companies like them.

Mud tank is widely used in drilling rig mud system. Per different function, there usually water tank, diesel tank, brine water tank, shale shaker tank, sank trap tank, active tank, storage tank, suction tank, mixing tank etc… Per different shape, there are square shaped tank, V-bottom tank, round bottom tank, and other customized shape tank.

GN Solids control is a professional solids control manufacturer, they can make customized tank per customers special requirement. GN can manufacture mud tank for its own brand fluids processing system but also GN make mud tank with customized design. We are located in China iron production City. The price of raw material here is very low and with high quality. There are also many experienced workforce in iron machine production. They work very efficiently. Moreover, GN control mud tank production cost well by outsourcing some processing work. So buy Mud tank from GN customer will enjoy high quality but Good price. GN are professional in manufacturing solids control system, GN mud tanks design are very compatible for mud circulation system using.

GN Solids Control is the first API certificated solids control manufacturer in China, they have his own heat treatment machine, ball blasting machine and other CNN machine. They are manufacturing per higher standard, see below:

1. Sand Blast Treatment before painting. External paint and internal coating

2. Two pack Epoxy zinc, thickness 75μ

3. Two Pack Epoxy hi-build containing anticorrosive pigmentstwice,  thickness 250 μ   4. Surface pigmented with high quality light fast  PU pigments, thickness 70 μ

4) Tank face covered with galvanized grating and steel plate

5) Skid mounted or Trailer Mounted 3 runner oilfield skid with V crimp walls

Shale shaker is the first stage solids control equipment. Sealing rubber is used between shale deck and shaker screen. It plays a very important part for shale shaker performance. A better quality sealing rubber can enable a longer life time of shale shaker and can great reduce the quantity of replacement shaker screen.

Functions of shale shaker sealing rubber

1) Shale shaker is a screening device adjust high vibrating strength to separate bigger particals from drilling fluids. Good quality Sealing rubber can reduce the friction of shale shaker deck and the shaker screen, and provented the shaker from damage.

2) What will happen if there isn’t sealing rubber? If there isn’t screen rubber or it is damaged, the screen frame will touch with shaker deck directly, which will be damaged in a very short time.

3) The worse condition is the dirty mud with many junks from well will fall into mud system directly. It needs the higher treating capacity of the next step equipment. Otherwise it may make damage to the next step solids control equipment, or even worse, it may block mud pump and make stop of the drilling rig.

4) If the sealing of the rubber is not good enough, its anti-corrosion not good enough, it will be broken easily under high temperature drilling mud, and the shaker screen will be damaged very quickly.

In some countires, like in China, Kuwait,Oman, U.S. , Canada, Australia, etc…, shale shaker is usually the only solids control equipment in a mud system. Drilling fluids only treated by shale shaker, then back to mud system for drilling again. In this case, it requrests a high standard for the reliability of shale shaker performance.
 Which brand shale shaker can suits such high requirement? See below:

1) Top 1 brand: Derrik FLC 514, Derrick FLC 513 shale shaker

2) Top 2 brand: GN Solids Control shale shaker: GNZS703, GNZS594
