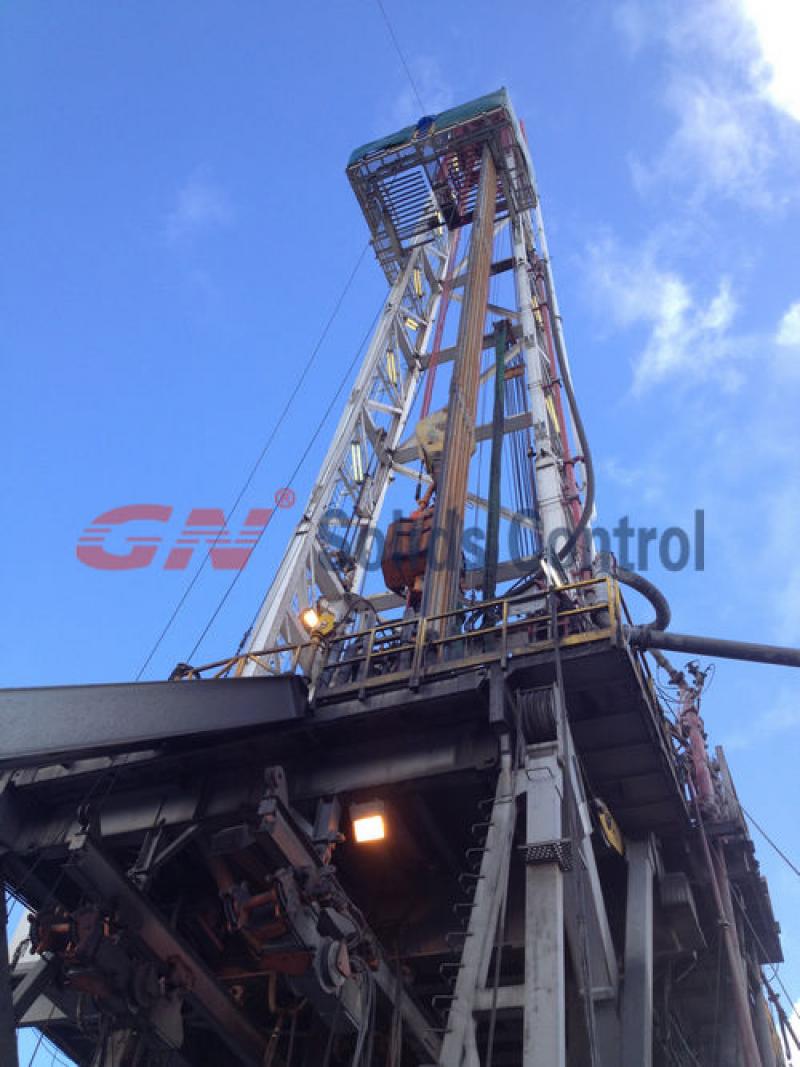

1500HP land drilling rig usually match 2000bbls mud system. The mud system will have complete full 4 stages solids control equipment and with 5 steps separation process.


Equipment included in 1500 hp land drilling rig mud system:

1) First stage solids control – Shale shaker GNZS594E / GNZS703E linear motion, 3 each

2) The second & third stage solids control – Mud cleaner GNZJ594E-3S-16N / GNZJ703E-3S16N, 1 each

3) Vacuum degasser GNZCQ360 to remove gas from drilling mud before enters into mud cleaner desander / desilter cone.


4) The fourth stage solids control – Decanter centrifuge, 2 each

 One decanter centrifuge GNLW452S in middle speed for barite recovery.

 Another decanter centrifuge GNLW363 in high speed to separate the low gravity mud.

5) Jet mud mixing & shearing mixing system, with GN high efficiency centrifugal pump and shear pump for chemical shearing and mixing.

6) 7 each Mud tanks: shale shaker tank, decanter centrifuge tank, suction tank, mixing tank, shearing tank, storage tank 1 or 2 each

Above is the standard 2000bbls mud system for 1500 hp land drilling rigs. GN Solids Control can make customized mud system per user’s special requirements. If you need more information of other size land drilling rig mud system, you can visit GN website or send mail to vivi@gnsolidscontrol.com
