The GN Mud Mixing Units is a Key Player in A Mud Mixing Tank

In the intricate world of drilling operations, the efficiency of mud management plays a pivotal role. At the heart of this management lies the drilling mud recycling system, seamlessly orchestrated by the mud recycling tank skid and mud mixing tank skid. Let’s delve into the intricacies of the mud mixing unit, a key player in ensuring a continuous and effective drilling process.

Understanding the Mud Mixing Unit
Positioned at the end of the mixing tank, the mud mixing unit holds a crucial role in preparing and maintaining the drilling mud. Before drilling kicks off, the unit combines clean water and mud materials to create the initial mud blend. As drilling progresses, adjustments are made to the mud properties by introducing new materials such as barite or polymers. The mud mixing unit efficiently draws drilling mud from the mixing tank, incorporating new materials, and then circulates the blend back into the mixing tank. To ensure thorough blending, mud agitators are commonly employed in the mixing tank.

Components of the Mud Mixing Unit

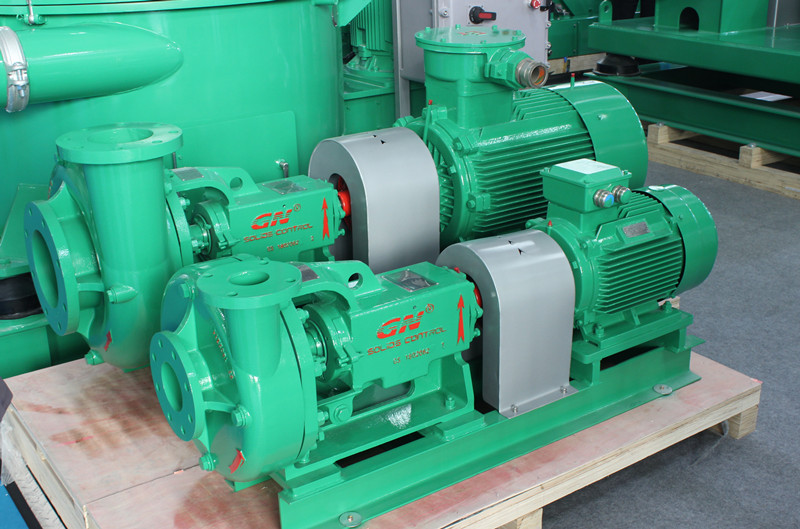

1. Centrifugal Pump (Mixing Pump): This pump serves as the lifeline, drawing drilling mud from the mixing tank and directing it to the hopper unit through a pipe manifold. Driven by an electric motor through a direct shaft connection, it ensures a consistent and efficient shearing process. GN opts for belt driving for enhanced shearing pump efficiency.

GN will Show at PetroTech 2019 this February in India - GN Solids Control

2.Mud Hopper: GN’s Ventri-type mud hopper, connected to the pipe manifold via a T pipe, facilitates the seamless addition of mud materials into the drilling fluids. Constructed with stainless steel for anti-corrosion durability, the hopper includes a bag breaker for rapid powder incorporation. The pipe manifold features a pressure gauge for the operator to monitor the mixing pump’s working pressure.

3. Control Panel: Equipped with an explosion-proof control panel for Zone 1 applications, GN’s mud mixing unit boasts user-friendly operations. With only three buttons – on, off, and emergency stop – the control panel ensures simplicity in operation. Signal lights complement the panel, providing clear indications of ongoing operations.

automatic control panel

Versatility in Installation
GN’s mud mixing unit offers flexibility in installation, accommodating both end-of-mixing-tank and separate small skid mounting options. Additionally, the unit can be designed as a dual hopper dual pump type, providing increased capacity or acting as a contingency measure in case of equipment breakdown.

In the intricate dance of drilling operations, the mud mixing unit emerges as a silent hero, ensuring the seamless flow of drilling mud, and consequently, the success of the entire operation. If you are interested, please contact me at for further information.
