SYSTEM

HDD drilling mud cleaning system is a kind of compact mud system.

Usually, it is a 1-tank mud system with mud recycling/cleaning system and mud mixing system. There is not so much space for mud storage. Users build mud storage tank locally or just dig a mud pit for storage.

GNZS703D shale shaker for mud cleaner is a perfect choise for HDD mud cleaning system. It is a double deck shaker can be used for both shale shaker and mud cleaner with only 1 machine.

GN200GPM mud recycling system for water well drilling is the best choice for water well drilling.

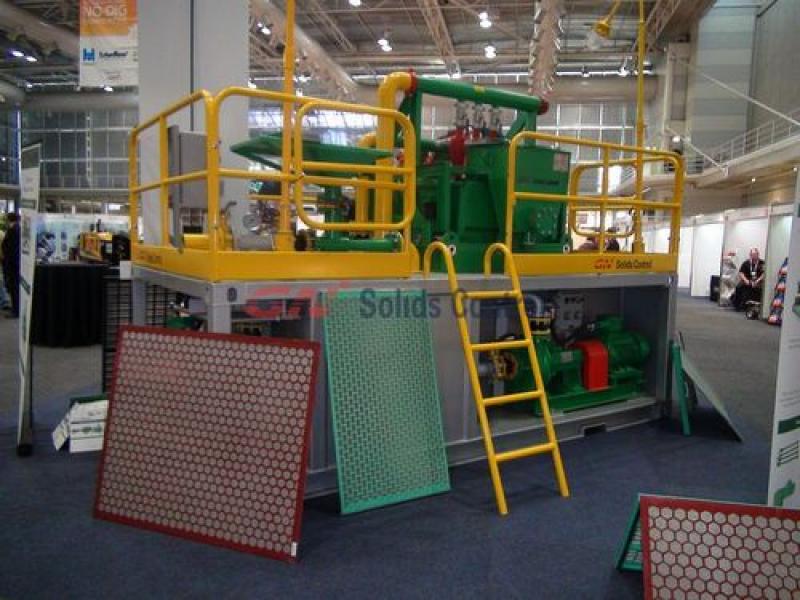

It takes the minimum  footprint at jobsite. 4 each 4 inch desitler cones mounted on a double deck shale shaker, the whole machine can be used as both shale shaker and mud cleaner.

Mud cleaner feeding pump mounted in the slope of the tank side, while mixing pump in a tank skid. Ladder, guardrail and walkway are foldable, easy for movement

Normal
0

7.8 磅
0
2

false
false
false

EN-US
ZH-CN
X-NONE

/* Style Definitions */
table.MsoNormalTable
{mso-style-name:普通表格;
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-qformat:yes;
mso-style-parent:””;
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin:0cm;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.5pt;
mso-bidi-font-size:11.0pt;
font-family:”Calibri”,”sans-serif”;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-font-kerning:1.0pt;}

Slurry feeding pump is widely used for HDD mud system.

Slurry pump for feeding HDD mud system is a kind of vertical single stage and single suction system overhung centrifugal pump.

Strong points of slurry feeding pump for HDD mud system:

1) Fluids Touch Material for slurry pump:  High chromium cast steel (Cr26)

2) Maintainence free design:No bearing and Gland Seal between impeller and pump body of the slurry feeding pump

3) Production Standard: API Q1   & ISO/TS29001  & ISO 9001:2008

4) Coating for the slurry feeding pump for HDD:Japan Kansai Brand (Epoxy zinc rich Coating)
