Hydrocyclone Desilter for drilling fluids is the 3rd stage solids control equipment for drilling fluids recycling system.

Desilter utilize smaller size Hydrocyclone to separate smaller size solids. Usually, 4 inch hydrocyclone used for drilling fluids desilter. It can remove drilling solids size over 27 microns.

Quality of hydrocyclones combined desilter various from 4 ea to 20 each, to get different treating capacity.

World top solids control manufacturer- GN Solids Control is among the few company who can offer shale shaker meet Australia and U.S standard.

GNZS703 shale shaker with IEC standard is welcomed well by Australia, U.S and Europe with its high quality and reasonable price.

GNZS703 IEC standard shale shaker parameter as following:

Capacity: 528GPM

Vibrating strength (Max.): 7.5G (Adjustable)

Vibrating model: Linear motion

Shaker screen: 2.6m2 (3 panel)

Shale shaker for fine solids separation is a develop trend for drlling rigs.

At present drilling site, more and more mud engineer choise to not match desander / desilter or machine with hydrcyclone. As its performance not stable and difficult for maintenance. You need to change cyclones very office, and every time for change, you need to stop the whole mud system.It incased the drilling cost somehow.

Shale shaker for fine solids separation comes out and welcomed by more and more people. It is shale shaker with very fine shaker screen and good conductance. It can separate even most fine solids in the mud. Relatively, it requirest a higher quality and more reliable performance of the shale shaker.

/* Style Definitions */
table.MsoNormalTable
{mso-style-name:普通表格;
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-qformat:yes;
mso-style-parent:””;
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin:0cm;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.5pt;
mso-bidi-font-size:11.0pt;
font-family:”Calibri”,”sans-serif”;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-font-kerning:1.0pt;}

GNZCQ270 is the most common vacuum degasser model. The capacity can meet most demands of different drilling site. It is interchangeable with most U.S separator models.

GNZCQ270 vacuum degasser is self suction type. While most US. brand vacuum degasser, they need a separate centrifugal pump feeding for it. It is a waste of power.

GNZCQ270 vacuum degasser utilize 2 motors. Main motor 22kw drive for the main machine, while a 3kw smaller motor power for the vacuum pump.

Vacuum degasser separator usually used after shale shaker and before desander/desilter. For details of GNZCQ270 vacuum degasser, visit GN websit.

Normal
0

7.8 磅
0
2

false
false
false

EN-US
ZH-CN
X-NONE

/* Style Definitions */
table.MsoNormalTable
{mso-style-name:普通表格;
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-qformat:yes;
mso-style-parent:””;
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin:0cm;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.5pt;
mso-bidi-font-size:11.0pt;
font-family:”Calibri”,”sans-serif”;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-font-kerning:1.0pt;}

GN Solids Control is one of the leading manufacturer for compact water well drilling. GN small mud system have characters of small footprint, fast movement and performance well and cost effective.

GN standard water well drilling mud system is capacity 100~200 GPM. matched with following equipment:

1) GNZS752 MINI shale shaker

2) GNZJ752 MINI mud cleaner mount only 4 ea 4’’ desilter cone

3) The max. mixing system: GNSL150-25M

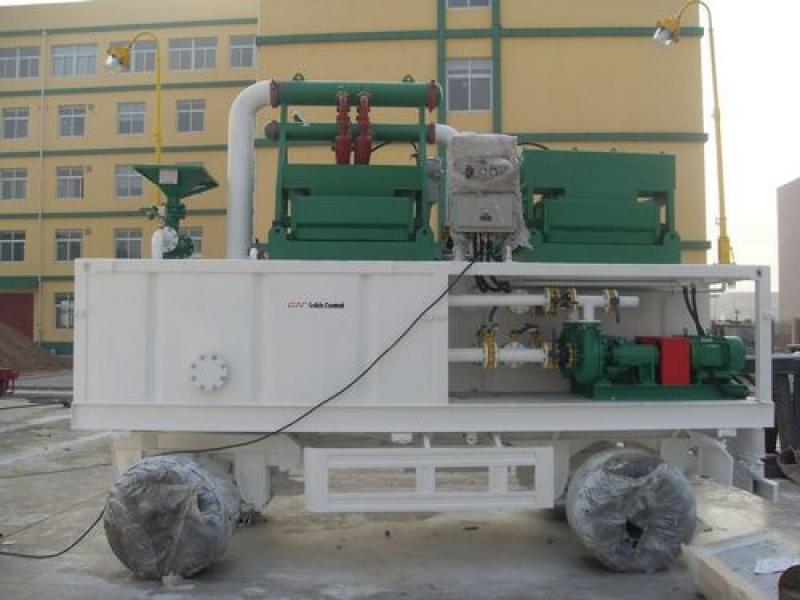

 GN offers skid mounted and trailer mounted mud system for well drilling. User can choose per their jobsite situation.
