cyclone

Hydrocyclone Desilter for drilling fluids is the 3rd stage solids control equipment for drilling fluids recycling system.

Desilter utilize smaller size Hydrocyclone to separate smaller size solids. Usually, 4 inch hydrocyclone used for drilling fluids desilter. It can remove drilling solids size over 27 microns.

Quality of hydrocyclones combined desilter various from 4 ea to 20 each, to get different treating capacity.

/* Style Definitions */
table.MsoNormalTable
{mso-style-name:普通表格;
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-priority:99;
mso-style-qformat:yes;
mso-style-parent:””;
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin:0cm;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.5pt;
mso-bidi-font-size:11.0pt;
font-family:”Calibri”,”sans-serif”;
mso-ascii-font-family:Calibri;
mso-ascii-theme-font:minor-latin;
mso-fareast-font-family:宋体;
mso-fareast-theme-font:minor-fareast;
mso-hansi-font-family:Calibri;
mso-hansi-theme-font:minor-latin;
mso-bidi-font-family:”Times New Roman”;
mso-bidi-theme-font:minor-bidi;
mso-font-kerning:1.0pt;}

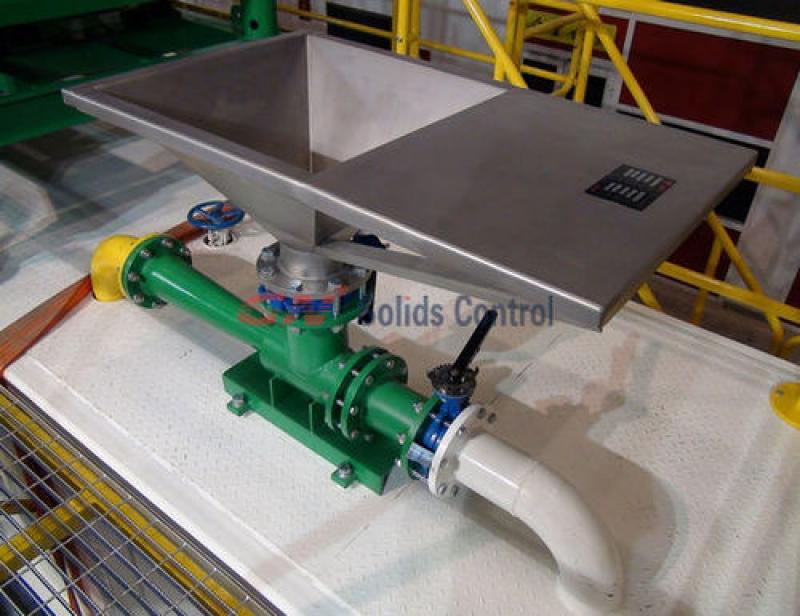

Mud mixing hopper is the main parts of bentonite mud mixing system. Mud mixing hopper can be connected with centrifugal pump and some linking pipes, and work together as bentonite mud mixer.

Bentonite mud mixing hopper has two types, one is cyclone mixing hopper which is also called swirl mixing hopper with features such as high mixing efficiency and fast feeding speed. And the other is jet mixing hopper that has high mixing efficiency and high pressure at outlet, especially working with shear pump.

The shale shaker is the only solids control device that makes a separation based on the physical size of the particle. The separation size is dictated by the opening sizes in the shaker screens.Per different drilling mud situation, shale shaker usually use shaker screen vary from API20 to API 325.

Hydrocyclones and centrifuges separate solids based on differences between their relative mass and the fluid. Different speed used per different applicaiton.

A client for microtunneling construction find us to offer solids control solution for their Middle East Project.They want to move solids over 0.3mm after treatment.

We match GNPJ703-D double dech shale shake mud cleaner. Bottom layer deck used as shale shaker,use 3mm shaker screen. Top layer deck used as mud cleaner,use 0.3mm screen.

For Hydrocyclone parts,clients want only 1 cone, GN choose a 20’’ big cone mounted on GNPS703-D shale shaker. In this case, solids over 0.3mm can be move away after treated of mud cleaner. Clients are using the plant now, happy with it.

BY 2 June 2012 Uncategorized

Nice desilter from GN Solids Control. All 2’’ desilter cones are in -line, compact in structure. Solids can be dischaged from side. Do you want to buy?
